Designed specifically for transporting plant machinery

The Ifor Williams plant trailer range is designed specifically for transporting plant machinery and has been standard equipment for many plant users and plant hire firms since the 1980s. We offer three distinct types of plant trailer; The GP, GX & GH Range.

GX Series trailers are constructed from folded pre-galvanized steel sections with filled-in sides for greater flexibility. The new body design allows the machine operator to safely step down from the cab.

The GP series trailers, widely regarded as the toughest plant trailers in the industry, have an open rectangular steel framework, integral with the chassis. Maximum gross weight of the range is 3500kg. Models range from the smallest GP106 to the largest GP146. Trailers are offered with three tyre options and larger models are also available as tri-axle versions.

The GH range of trailers is the latest addition to our plant trailer range. GH models are of galvanized welded construction with leaf spring suspension ensuring they will withstand tough conditions.

Trailers are offered with hinged adjustable skids or a full-width loading ramp. Sizes range from the smallest GX84 up to the largest GX126. Trailers can be further enhanced by accessories such as a ladder rack, factory fitted aluminium treadplate floor covering, meshside extensions (only practical with full-width loading ramp), bolt on ramp knife edge, recessed lashing rings and 1.8m/6’ skids or ramp in place of the standard size of 1.2m/4’. A built-in bucket rest is standard on all GX models.

GX Models are available with maximum gross weights of 2700kg and 3500kg.

All our plant models are fitted with integrated ramp and skid supports. This standard feature ensures trailers are supported whilst being loaded without the need to deploy prop stands.

The GH94 is the latest addition to our plant trailer range with a 9’ x 4’ platform and a choice of two ramp lengths. Offering a generous payload of up to 2210kg and a maximum gross weight of 2700kg, the GH94 is ideal for customers with a restricted towing capacity and is a favourite with plant hire companies.

Resin coated plywood floor

Phenol-coated on both sides, our ply platform floors feature an embossed grip pattern on the upper surface.

Jockey wheel

Heavy duty jockey wheel provides support for the load and mobility of the trailer, when the trailer is uncoupled.

Treadplate mudguards

Walk-on steel treadplate mudguards

Lashing points

500kg lashing points

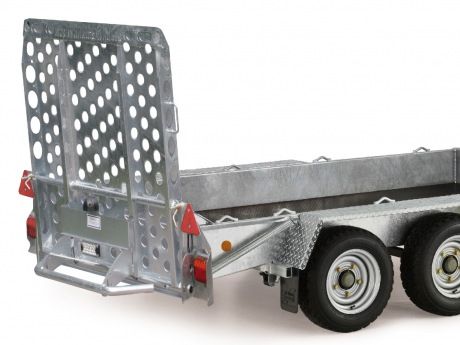

Full width ramp

Full width ramp

Bevelled ramp

Bevelled ramp to help guide the tracks or wheels of plant being loaded.

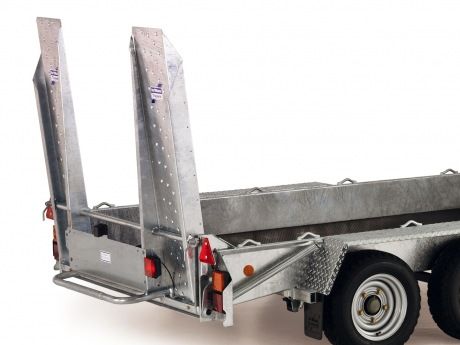

Hinged skids

Spring assisted self supporting ramp

Bucket rest

Raised bucket rest with lip for excavator teeth.

Spare wheel

A mounting bracket and spare wheel are fitted as standard to all Ifor Williams trailers for complete peace of mind.

Integrated rear prop stands

For use when trailer is uncoupled offering additional stability when loading.

Security marking registration with TER

Each trailer is fitted with an ID plate which has a unique serial number etched on it. Additionally, the drawbar has a different unique number cut through it, which is virtually impossible to alter without noticeably affecting the appearance of the numbers and galvanized finish.
