Livestock

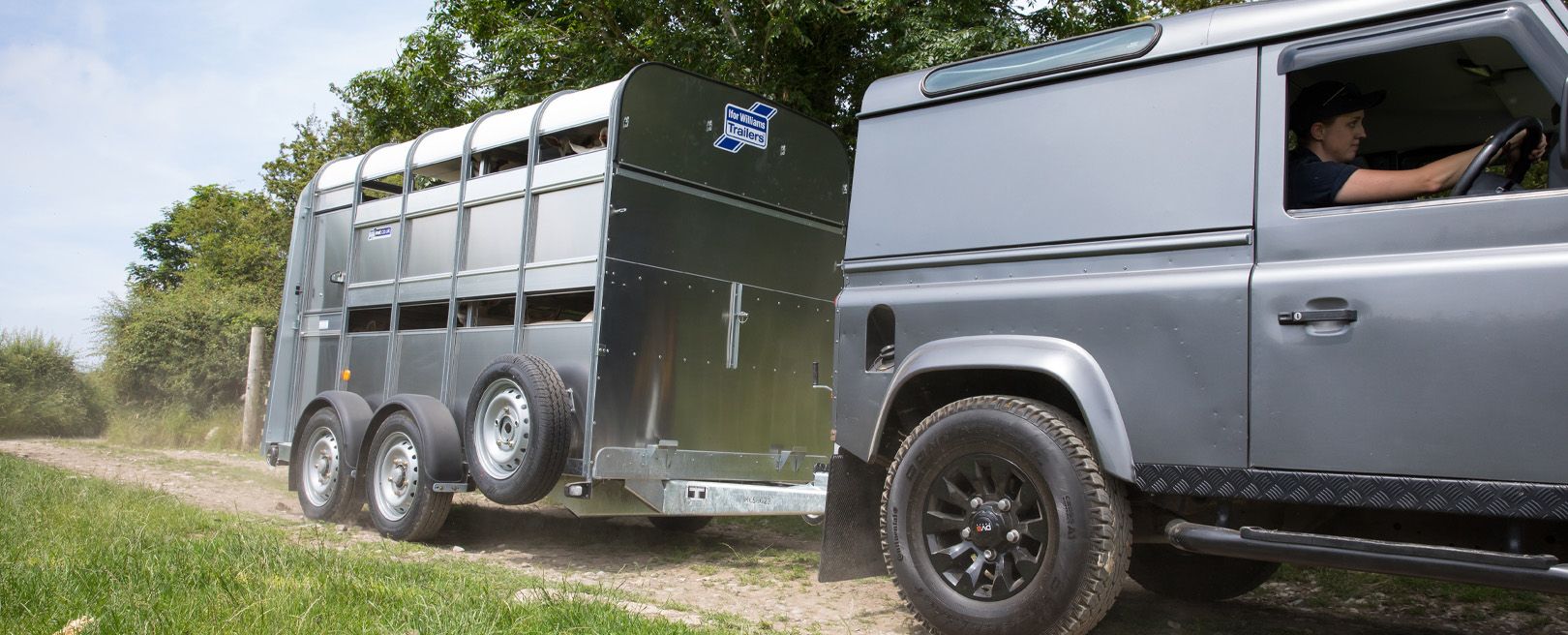

TA5 Range
A substantial yet slightly narrower livestock trailer, ideal for navigating rural tracks and lanes.
The Ifor Williams TA5 is available with 4', 6' or 7' headroom.
The TA5 4’ headroom models are slightly wider than the P6 and P8 at 5’, and feature wider side vents with flaps giving increased ventilation. With the low headroom and increased floor area, the wind resistance is minimised when towing, a bonus when travelling long distances. The twin axles provide a maximum gross weight of 2700kg.
The rear ramp is covered with grip face aluminium planking and is fitted with a ramp assistor. The TA5 is available in 8’, 10’, and 12’ body lengths.
TA5 models with 6' or 7' headrooms are suitable for customers requiring an alternative to the larger TA510 or DP120. The TA5 range with 6’ or 7’ headroom is a substantial but slightly narrower trailer, ideal for navigating rural tracks and lanes.
The TA5 6’ and 7’ are available in 8’, 10’, and 12’ body lengths. The 8’ and 10’ versions have a maximum gross weight of 2700kg, while the 12’ heavy duty version offers 3500kg maximum gross weight.
EasyLoad Deck System
Unique to Ifor Williams Trailers, the factory fitted EasyLoad ramp and folding deck system simplifies the loading of the upper deck without the need to manhandle ramps or livestock.
With the deck system folded away the trailer is suitable for use with cattle and other livestock. All components are stored on board the trailer and are conveniently and safely stowed for quick access. When required the deck can be deployed or stowed within a few minutes without the need for any tools or special equipment.
With the decks deployed the EasyLoad ramp can be operated, lifting easily into position, assisted by way of two gas springs. This requires little effort from the operator and stowage is just as effortless. Utilising the weight of the operator the ramp lowers and is simply locked in place.
The EasyLoad ramp is used in conjunction with the folding deck system and must be specified at time of order.
Beam axle & leaf spring suspension
The Ifor Williams beam axle system increases stability and reliability whilst ensuring minimum maintenance.
Ramp
Standard ramp
Front inspection door
A single door is fitted to 4’ headroom models for quick easy access. The split door on 6’ and 7’ models allows separate access to lower and upper decks.
Lockable coupling head
The lockable low-profile coupling head ensures optimum clearance of 4×4 rear doors and can be locked on or off the coupling for additional security.
EasyLoad™ ramp
The EasyLoad™ ramp and folding deck system.
Security marking registration with TER
Each trailer is fitted with an ID plate which has a unique serial number etched on it. Additionally, the drawbar has a different unique number cut through it, which is virtually impossible to alter without noticeably affecting the appearance of the numbers and galvanized finish.
